The Microscope Turret: A Gateway to Magnification?

The microscope turret, also known as the nosepiece, is arguably one of the most crucial mechanical components of a compound microscope. This rotating mechanism, typically located at the base of the microscope’s body tube, serves as the mounting point for the objective lenses. Its primary function is to allow users to seamlessly switch between different magnification powers by rotating the desired lens into position above the specimen. How does the turret contribute to microscopic efficiency? By enabling rapid changes in magnification without the need to manually unscrew and replace lenses, the turret facilitates smooth workflow and prevents potential damage to delicate optical components. The precision engineering of this component ensures that each lens clicks securely into perfect alignment with the microscope’s optical path, maintaining consistent focus and image quality across different magnification levels.

The evolution of the turret parallels the development of microscopy itself. Early microscopes required users to physically exchange lenses, a time-consuming process that risked contaminating optical surfaces and losing the area of interest. The introduction of the rotating turret in the 19th century represented a significant advancement, revolutionizing how scientists interacted with the microscopic world. Today, this component remains fundamental to microscope design, whether in educational settings, clinical laboratories, or advanced research facilities. Understanding the turret’s operation, maintenance, and relationship with other microscope components is essential for anyone seeking to master light microscopy techniques and unlock the full potential of this powerful scientific instrument.

Anatomy and Mechanical Design: Precision in Rotation

The microscope turret is a marvel of mechanical engineering, designed for both durability and precision. Modern turrets typically hold between three to five objective lenses, though specialized microscopes may feature nosepieces accommodating up to seven objectives. The construction involves high-grade metals or engineered polymers that provide structural stability while minimizing weight. What mechanical principles ensure the turret maintains precise alignment? The turret operates on a bayonet-style mounting system with precisely machined grooves and spring-loaded ball bearings that click into corresponding detents for each lens position. This mechanism guarantees reproducible positioning accuracy within microns, ensuring that the optical axis remains perfectly centered regardless of which objective is selected.

The rotational mechanism incorporates several sophisticated elements to ensure smooth operation and longevity. A central pivot shaft allows the turret to rotate freely while maintaining perpendicular alignment with the microscope stage. High-quality lubricants reduce friction and wear while preventing contamination of optical elements. The ball-bearing detent system provides tactile and auditory feedback when an lens clicks into position, confirming proper engagement. Additionally, manufacturers implement parfocal design, meaning that when one objective is in focus, others on the same turret will require minimal adjustment to achieve sharp focus. This sophisticated mechanical design transforms the simple act of rotating the nosepiece into a precise scientific operation that maintains optical integrity throughout magnification changes.

Optical Integration: The Turret’s Role in Image Formation

The microscope turret serves as the critical interface between the microscope’s mechanical framework and its optical system. Each objective lens mounted on the turret represents a complex assembly of optical elements engineered to correct for various aberrations while providing specific magnification, numerical aperture, and working distance. How does the turret contribute to maintaining optical alignment? The turret ensures that the central axis of each objective lens coincides perfectly with the microscope’s optical path, which continues through the body tube to the eyepieces. This precise alignment is essential for producing sharp, aberration-free images across all magnification levels.

The arrangement of lenses on the turret follows strategic optical considerations. Objectives are typically mounted in order of increasing magnification, allowing logical progression during specimen examination. Modern microscopes often feature infinity-corrected optical systems where the turret plays an additional crucial role. In these systems, light emerges from the objectives as parallel bundles of rays that travel through the body tube to the tube lens, which then converges the light to form an intermediate image. The turret in infinity-corrected systems must maintain even more stringent alignment tolerances since the optical pathway involves additional elements. Furthermore, the turret design must accommodate the physical dimensions of different objectives, particularly high-magnification lenses with close working distances that might otherwise collide with the stage or specimen when rotated into position.

Objective Lenses: The Turret’s Magnification Arsenal

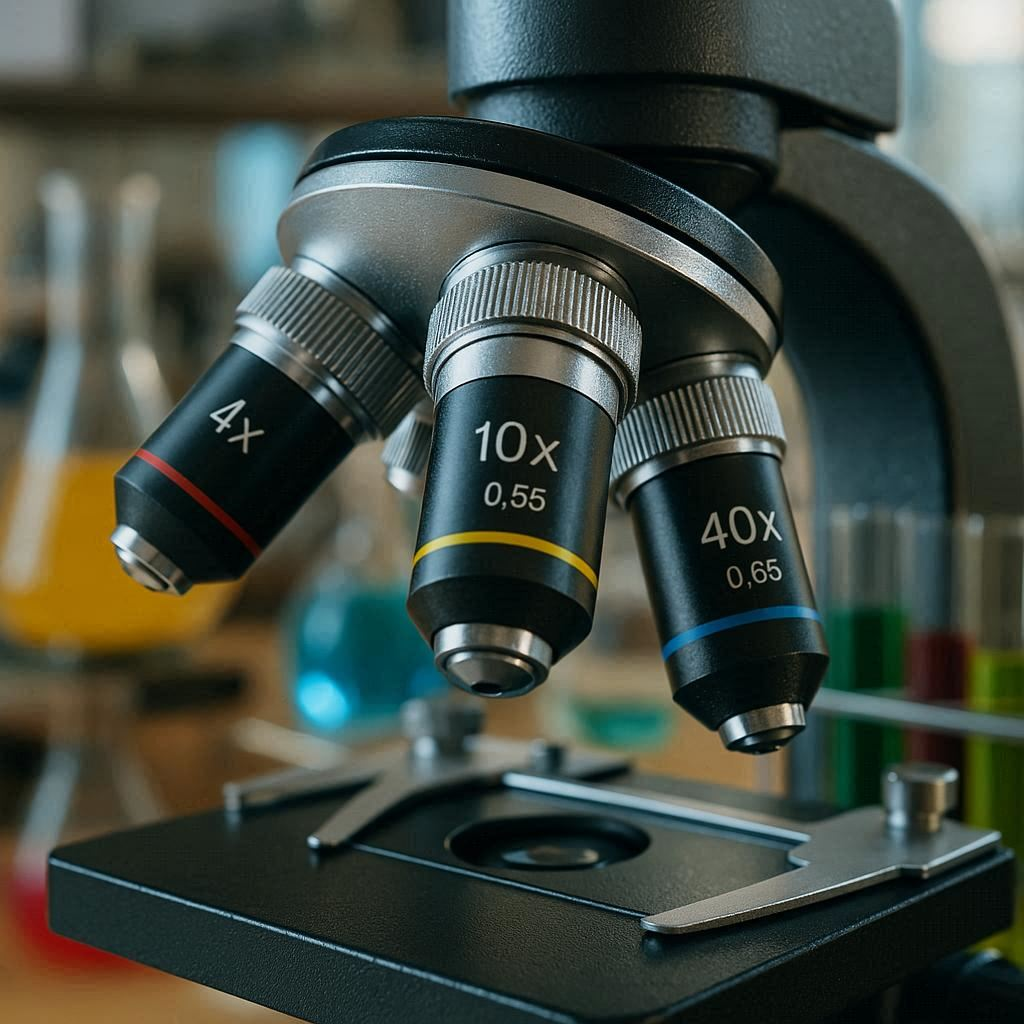

The objective lenses mounted on the microscope turret represent the heart of the magnification system, with each lens offering distinct optical characteristics. Standard turret configurations typically include scanning (4x), low power (10x), high power (40x), and oil immersion (100x) objectives. What distinguishes different objective lenses on the same turret? Each lens varies in magnification factor, numerical aperture, resolution capability, working distance, and degree of optical correction. The scanning objective provides a wide field of view for initial specimen location, while successive objectives deliver increasing magnification and resolution for detailed observation of finer structures.

The quality of images produced by a microscope depends significantly on the quality of the objective lenses and their proper mounting on the turret. Modern objectives incorporate multiple glass elements engineered to correct for chromatic and spherical aberrations. Achromatic objectives provide basic correction for two colors, while more sophisticated plan apochromatic lenses correct for three colors and feature flatfield optics for edge-to-edge image sharpness. The turret must securely hold these precision optical instruments in perfect alignment while allowing easy interchangeability for maintenance or upgrades. Additionally, many contemporary microscopes feature specialized objectives for techniques like phase contrast, differential interference contrast, or fluorescence microscopy, all mounted on the same turret but requiring specific complementary components in the optical path to function correctly.

Working Principles: From Rotation to Magnification

The operation of the microscope turret involves both simple mechanical action and sophisticated optical principles. When a user rotates the nosepiece to select a different objective, they’re engaging a precisely engineered system that maintains optical continuity while changing the fundamental viewing parameters. What happens optically when you rotate the turret to a higher magnification? Switching to a higher magnification objective increases angular magnification but typically decreases the field of view, working distance, and depth of field while potentially requiring adjusted illumination intensity to compensate for reduced light transmission.

The proper technique for rotating the turret emphasizes deliberate, firm movement rather than gentle nudging. Users should grasp the outer edge of the nosepiece and rotate until feeling and hearing a distinct click confirming the lens is locked in position. This practice ensures positive engagement and prevents the turret from settling between detents, which would misalign the optical path. When changing from low to high magnification, best practices involve first centering the area of interest, then rotating the nosepiece while carefully observing the clearance between the objective and specimen. For oil immersion objectives, additional steps include applying immersion oil before rotating the 100x lens into position. Understanding these operational principles ensures optimal image quality, protects valuable equipment from damage, and develops proper microscopy technique essential for accurate observation and documentation.

Maintenance and Troubleshooting: Preserving Turret Performance

Regular maintenance of the microscope turret is essential for preserving optical performance and mechanical functionality. The rotating mechanism requires periodic inspection to ensure smooth operation and proper alignment. What are the most common turret-related issues in microscopes? Typical problems include stiff rotation, failure to click into position properly, drifting out of position during use, and parfocality errors where objectives don’t maintain focus when switched. These issues often stem from accumulated dust, dried lubricant, worn detent mechanisms, or accidental impact damage.

Preventive maintenance begins with proper handling—always rotating the turret by grasping the nosepiece itself rather than applying force to the objectives. Regular cleaning of the lens mounting threads and turret face prevents debris from interfering with proper seating. If rotation becomes stiff, manufacturers often provide specific lubrication points using specialized microscope greases. For turrets that fail to lock securely into position, the spring-loaded ball bearing mechanism may require cleaning or replacement. Parfocality issues necessitate professional adjustment since they involve precise mechanical alignment of all objectives relative to the focal plane. Additionally, when changing objectives, technicians must ensure each lens is securely threaded into the nosepiece to prevent loosening during rotation, which could lead to catastrophic falling of expensive optical components. Establishing a regular maintenance schedule for the turret significantly extends the microscope’s operational lifespan and ensures consistent performance.

Historical Evolution: From Simple Mount to Precision Component

The development of the microscope turret reflects broader technological advancements in precision manufacturing and optical science. Early compound microscopes from the 17th and 18th centuries lacked interchangeable objectives, typically featuring a single fixed lens system. How did the turret revolutionize microscope functionality? The introduction of the rotatable nosepiece in the mid-19th century transformed microscopy from a static observation method to a dynamic investigative process, allowing rapid comparison of specimen features at different magnifications and paving the way for more sophisticated analytical techniques.

The earliest turret designs appeared in French and German microscopes around the 1850s, initially as simple rotating plates holding two or three objectives. These primitive nosepieces lacked precise locking mechanisms, often resulting in misalignment and image degradation. The refinement of spring-loaded detent systems in the late 19th century significantly improved reliability and positioning accuracy. Throughout the 20th century, standardization of objective thread sizes (RMS thread) and parfocal distances allowed interoperability between microscopes and objectives from different manufacturers, further establishing the turret as a universal microscope component. The late 20th century introduced motorized nosepieces in research-grade microscopes, enabling automated magnification changes and integration with digital imaging systems. This evolution from simple mechanical mount to sophisticated electro-mechanical component mirrors microscopy’s journey from casual curiosity to essential scientific tool.

Specialized Turrets: Beyond Standard Light Microscopy

While standard compound microscopes feature basic manual turrets, specialized microscopy techniques often require customized nosepiece designs with enhanced capabilities. What specialized turret designs exist for advanced microscopy applications? Inverted microscopes for cell culture observation feature turrets located beneath the stage, while stereomicroscopes often utilize a drum turret system that rotates entire optical barrels rather than individual objectives. These specialized designs address the unique requirements of different observation methods and specimen types.

Research-grade microscopes frequently incorporate motorized turrets that can be controlled remotely via computer interface. These automated nosepieces enable reproducible imaging workflows, eliminate focus shift caused by mechanical vibration during manual rotation, and can be programmed to sequentially employ different contrast methods. Fluorescence microscopes often feature motorized turrets coupled with filter cubes, synchronizing objective changes with appropriate excitation and emission filters. Some advanced systems even include encoded nosepieces that communicate objective identity and parameters to the microscope control system, automatically adjusting illumination intensity and camera settings optimal for each specific lens. These sophisticated turret systems represent the cutting edge of microscope automation, enabling complex multimodal imaging protocols that would be impractical with manual operation.

Educational Importance: Teaching Proper Turret Technique

In educational settings, the microscope turret serves as an essential teaching tool for introducing proper microscopy technique. Students learning to use compound microscopes must master nosepiece operation as one of their fundamental skills. Why is proper turret technique particularly important for beginners? Correct rotation method prevents damage to objectives and slides, maintains parfocality, and helps students develop systematic observation habits essential for accurate specimen examination and documentation.

Microscopy instruction typically begins with explaining the turret’s function and demonstrating proper rotation technique—emphasizing grasping the nosepiece itself rather than the objectives, rotating firmly until hearing the click, and always checking clearance between the objective and slide, particularly when switching to higher magnifications. Educators often use the turret to illustrate optical concepts like the inverse relationship between magnification and field of view by having students observe how the visible area changes as they rotate through different objectives. Common student difficulties include failing to fully engage the detent mechanism (resulting in blurred images), attempting to use oil immersion objectives without oil, and forcing the turret when an objective obstructs rotation. Overcoming these challenges through proper instruction ensures students develop confidence and proficiency with this essential scientific instrument.

Future Developments: The Evolution of Turret Technology

The future of microscope turret design points toward increased integration, automation, and intelligence. Modern research trends favor completely automated imaging systems where the nosepiece functions as one component in a sophisticated digital workflow. What innovations might we see in future microscope turrets? Emerging technologies include magnetically mounted objectives that maintain precise alignment without mechanical threads, nosepieces with integrated sensors that monitor objective performance and usage, and ultra-compact turret designs for portable microscopy systems.

The growing field of computational microscopy may eventually transform the traditional turret concept. Some experimental systems already employ fixed array of objectives with electronic switching rather than mechanical rotation. Others utilize zoom optical systems that provide continuous magnification without discrete objectives, potentially eliminating the need for traditional turrets altogether. However, for conventional microscopy, we can expect continued refinement of motorized nosepieces with faster switching speeds, higher positioning accuracy, and tighter integration with digital image analysis platforms. As artificial intelligence plays an increasing role in microscopy, we may see “smart” turrets that suggest optimal objective selection based on real-time image analysis, further enhancing workflow efficiency for both clinical and research applications.

Table: Comparison of Microscope Turret Types

Frequently Asked Questions (FAQ)

1. Why does the turret click when I rotate it?
The clicking sound indicates the spring-loaded ball bearing has engaged with the detent groove, confirming the objective is perfectly aligned with the optical path. This positive locking mechanism ensures consistent positioning and optimal image quality.

2. Can I add more objectives to my microscope turret?
Most standard turrets have a fixed number of positions. While you can replace existing objectives with different magnifications, adding extra positions typically isn’t feasible without custom modification, which may compromise optical alignment.

3. Why should I always rotate the turret by holding the nosepiece itself?
Rotating by the nosepiece rather than the objectives prevents loosening the threaded objectives, maintains optical alignment, and reduces stress on the delicate lens elements, preventing potentially costly damage.

4. What does it mean if my turret feels stiff or doesn’t click into position?
Stiff rotation or failure to click usually indicates accumulated debris, dried lubricant, or worn detent mechanisms. These issues typically require professional cleaning and maintenance to restore proper function.

5. How do motorized turrets improve microscopy work?
Motorized turrets enable faster magnification changes, eliminate focus shift from mechanical vibration, allow remote operation, and can be integrated into automated imaging workflows for enhanced reproducibility and efficiency.
